Linear Heads

LJ Linear Heads

Linear Heads LJ Linear Heads
  • By Combining with a Motor, Linear Movements such as Pushing, Pulling, Raising, and Lowering are Possible
  • Maximum Transportable Mass 200 kg
  • Stroke 100 to 700 mm
  • Combination Motor: Three-Phase High Efficiency Motor with Electromagnetic Brake

คุณลักษณะ | Linear Head LJ Linear Head

Features of the Linear Head

Compact Size and Maximum Transportable Mass of 200 kg

  • Maximum Transportable Mass 200 kg

    Larger-diameter pinion with increased gear strength realizes a maximum transportable mass of 200 kg*

    • *The maximum transportable mass varies depending on the gearhead's gear ratio and the motor to be combined.
  • Maximum Stroke 700 mm

    Product line with strokes of 100~700 mm

Compact Size and Maximum Transportable Mass of 200 kg

Fix the Rack to Make the Best Use of Space

The motor can run by itself by fixing both ends of the rack.
Effective for installation where motor space is difficult to secure.

Space Saving

Contributes to Improved Design Efficiency

Reduces Startup Time From Design

Compared to building the rack-and-pinion mechanism on your own, the number of parts used and the labor required for design and assembly can be reduced.

Comparison of the Number of Components

Reduced Labor for Assembly and Maintenance

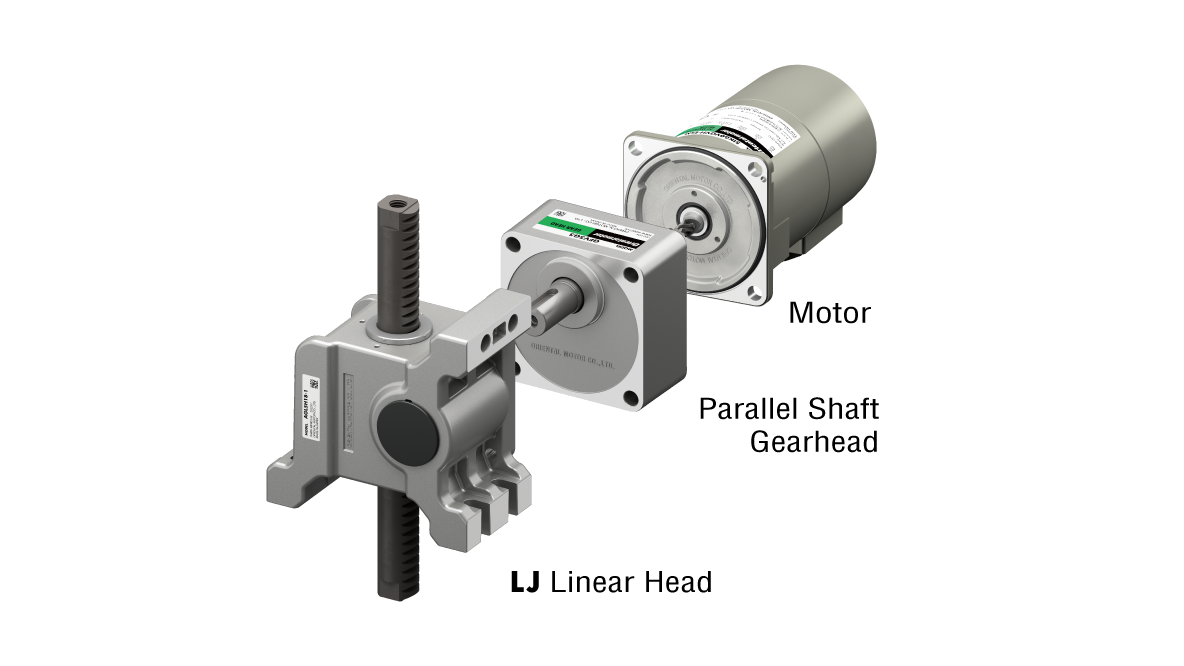

  • Can be Easily Combined With a Parallel Shaft Gearhead

    Installation and maintenance of the motor can be easily performed.

    Can be easily combined with a parallel shaft gearhead

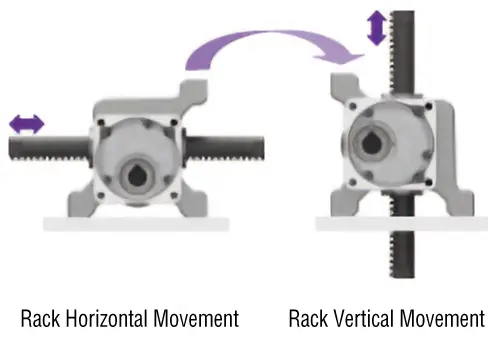

  • The Rack Can be Mounted Both Horizontally and Vertically

    The ability to freely choose the mounting direction adds to improved ease of design and cost reductions through the sharing of parts.

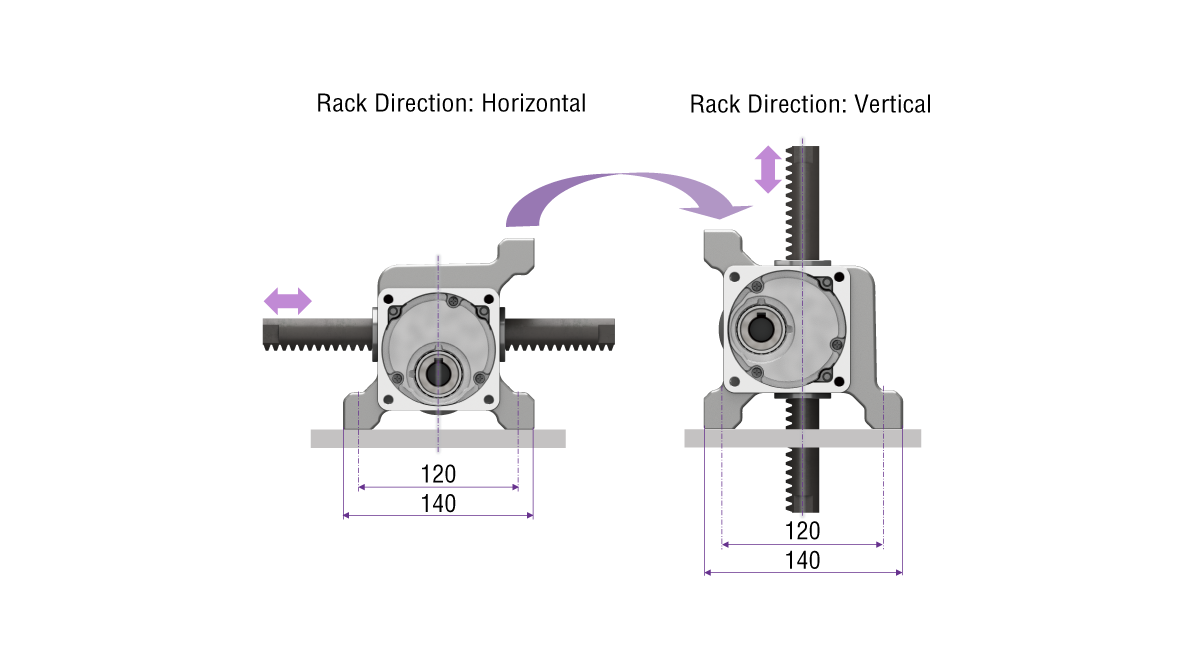

    Can be Installed in Both Orientations

Comparison of LJ Linear Head and LH Linear Head

Here is a comparison of the specifications of the 2 linear heads. Select the linear head that best suits your application and operating conditions.

LJ Linear Head LH Linear Head
Maximum Transportable Mass 200 kg*1 ~70 kg
Stroke 100~700 mm 100~700 mm
Operating Speed ~452 mm/s*1
  • 10 mm/s
  • 20 mm/s
  • 45 mm/s
Combination Motor
  • Three-phase high efficiency motor with electromagnetic brake
  • αSTEP AZ Series*2

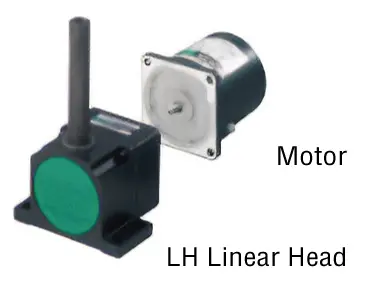

  • Reversible motor
  • Electromagnetic brake motor
Linear Head Shape
(Rack moving direction)

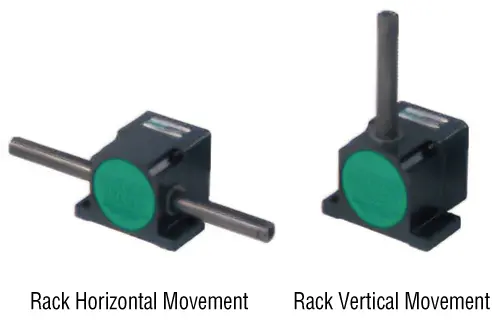

The rack can be mounted both horizontally and vertically

The rack can be mounted both horizontally and vertically

2 types available

2 types available
Motor Assembly Method

Parallel shaft gearhead + Motor assembled

Parallel shaft gearhead + motor assembled

Motor assembled

Motor assembled
*1
Varies depending on the gearhead's gear ratio and the motor to be combined.
*2
Click here for information about the combination with the αSTEP AZ Series

Applications

The rack-and-pinion mechanism, which can be applied to a variety of applications, is a user-friendly product that can be selected as if it were a component.

  • Bucket Transfer Belt Conveyor

    ① Fix the rack and drive the motor vertically
    ② Fix the motor and drive the rack horizontally

    Application Example: Bucket Transfer Belt Conveyor
  • Machine Parts Cleaning Equipment

    ① Fix the motor and drive the rack vertically
    ② Fix the rack and drive the motor horizontally

    Application Example: Machine Parts Cleaning Equipment

Product Line

Please purchase "linear head," "gearhead," and "motor" separately.

LJ Linear Head
Linear Head Product Line
(Combined motors output power W)
W × H × D*1
[mm]
Maximum Transportable Mass kg*2
(Operating speed mm/s*2)
Stroke
[mm]
LJ Linear Head 60 140 × 140 × 293 14
(376)
152
(9.4)
100, 200, 300, 400, 500, 600, 700
Maximum transportable mass and operating speed vary depending on the gearhead's gear ratio.

100 140 × 140 × 314 23
(376)
200
(15)
100, 200, 300, 400, 500, 600, 700
Maximum transportable mass and operating speed vary depending on the gearhead's gear ratio.

*1
When the gear ratio of the parallel shaft gearhead is 180
*2
Calculated from permissible torque and rotation speed of parallel shaft gearhead at power supply frequency of 50 Hz

Related Products

L Series αSTEP AZ Series Equipped/
LJ Linear Head Combination With αSTEP AZ Series

Highly accurate multi-point positioning can be easily achieved due to the battery-free AZ Series with ABZO sensor equipped.

L Series
AC Speed Control Motor DSC Series Equipped

AC speed control motor DSC Series is equipped for easy speed control.

View More About the L Series AC Speed Control Motor DSC Series Equipped
L Series AC Speed Control Motor DSC Series Equipped

L Series
AC Speed Control Motor DSC Series Equipped
