Brushless Motors
BXII Series
- Multifunctional Model Capable of Position Control
- Speed Regulation ±0.05 %
- For the Type with an Electromagnetic Brake, It Can Hold the Load During Vertical Operation
- Output Power 30 to 400 W
- Speed Control Range (2) 30 to 4000 r/min
คุณลักษณะ | Brushless Motor BXII Series
Speed Control
Wide Speed Control Range 2~4000 r/min
- Achieved speed ratio of 1:2000.
- Suitable for applications that require constant torque from low to high speeds.
(30~4000 r/min at analog setting.)
Stable Motor Drive
Speed Regulation ±0.05 %
Reduces speed variation due to changes in the load (load fluctuation) and the change of ambient environment (changing ambient temperature, voltage fluctuation).
Flutter Characteristics Effective Value: Approx. 0.1 %
The effective value of the flutter characteristics, which represents speed fluctuations of motor rotation, is about 0.1 %. (Reference value at rated speed)
Even when rotating at a certain speed, there will be slight fluctuation in the actual speed around the target rotation speed. The speed fluctuations are known as flutter.
Supports Multi-Speed Operation with Up to 16 Speeds
Up to 16 points of operation data, such as operating speed and acceleration/deceleration time, can be set.
Position Control
Operation and Switch Up to 16 Data Points With Just I/O
You can set up to 16 points of operation data such as travel amount and operating speed.
Linking Multiple Operation Data
In addition to single data setting, you can also set linked operation, which combines multiple operation data.
- *Dwell time is the wait time until the next positioning operation starts.
Continuous Rotation in the Same Direction is Possible
The command position and multiple rotation data can be returned to 0 if the command position exceeds the "wrap setting range" parameter value. Since the multiple rotation data is returned to 0, continuous rotation in the same direction is possible.
Vertical Operation and Position Holding
All models can be selected with or without an electromagnetic brake. The electromagnetic brake is automatically controlled to turn ON/OFF according to the operation command signal to the driver.
Capable of Vertical Operation (Gravitational operation)
With an electromagnetic brake, stable speed control is possible even when driving vertical operation.
During vertical operation, regenerative energy is generated. Use a regeneration resistor (Sold separately).
Capable of Position Holding When Stopped
Position holding when driving in a vertical direction* or horizontal direction is possible.
When driving horizontally, it is possible to set servo lock at motor standstill, which excites the motor to generate a holding force.
- *For vertical operation (gravitational operation), use a product with an electromagnetic brake.
Prevents Loads From Falling in an Emergency
The electromagnetic brake is of the power off activated type, so it works automatically even when power is lost in a blackout. Instantly stops the motor and prevents the load from falling.
Electromagnetic brake structure and service life|Technical reference
Torque Limiting Function
It can be used for applications that require adjustment of torque and tension, such as tension (brake), pushing (pressing), and tightening.
-
Tension - As a Brake to Gain Tension
-
Pushing - For Printing and Other Press Applications
The setting range of the maximum instantaneous torque of the motor can be limited from 0 to 250 % in 1 % units.
- Torque limiting accuracy ±10 % approx. (relative to rated torque)
- Torque limiting can be switched ON/OFF with an external signal (TL input)
Support Software, Monitoring Function
Easy Setting and Start-Up With MEXE02 Support Software
By using the support software MEXE02, you can set and edit operation data and various parameters, as well as teach and monitor various conditions.
Click here to download the support software
Comprehensive Support From Start-Up to Maintenance With a Variety of Functions
-
Startup and Evaluation
Useful functions for wiring check and test operation are provided.

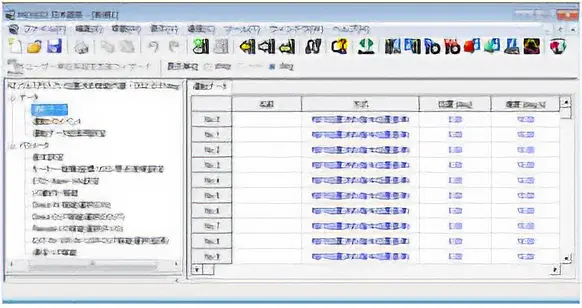

- Setting and Saving of Operation Data
- I/O Monitor
- Teaching, Remote Operation
-
Adjustment
The following functions are available to help you adjust motor operation after the equipment is installed.

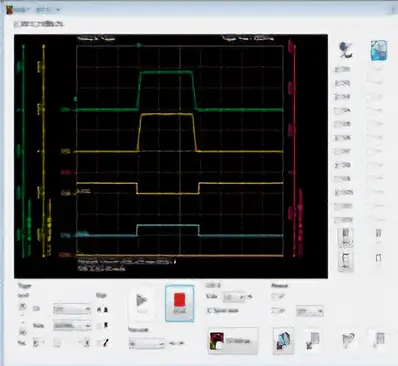

- Waveform Monitor
-
Diagnosis and Maintenance
Diagnostic and maintenance functions are available for trouble diagnosis and maintenance after operation is started.
- Alarm Monitor
- Status Monitor
- Warning Monitor
On-Site Monitoring and Troubleshooting are Also Possible
Speed and alarm information can be monitored on the driver's display screen. Data setting and test operation are also possible at the operation panel.
If the OPX-2A control module is connected, operation becomes even easier.
Reduction of Installation Space
Compact Driver for Close Installation to Reduce Installation Space.
Optimized arrangement of internal parts has made the drivers compact and slim. It also supports close installation of multiple units, further reducing installation space.
Gearhead Type
Gearhead Type
Gearhead Types | Parallel Shaft Gearhead | Hollow Shaft Flat Gearhead |
---|---|---|
GFS Gearhead | FR Gearhead | |
External View | ||
Features |
|
|
Output Power | 30 W, 60 W, 120 W 200 W, 400 W |
30 W, 60 W, 120 W 200 W, 400 W |
Gear Ratio | 5~200 | 5~200 |
Rated Life | 10000 hours | 10000 hours |
Permissible Radial Load* | 1400 N | 2040 N |
Permissible Axial Load* | 400 N | 800 N |
Permissible Torque* | 70 N·m | 54 N·m |
- *This value is for output power of 200 W, 3000 r/min, and the maximum gear ratio.
Significantly Increases Permissible Load Flange Drive Adapter (Sold separately)
Mounting on a parallel shaft gearhead increases permissible radial and axial loads.
Product Line
The motor, driver, and connection cable can be purchased individually.
Note
The motor cable and the encoder cable from the motor cannot be connected directly to the driver.
Be sure to purchase a connection cable or flexible connection cable.
Output Shaft Type*1 | Frame Size [mm] |
Rated Output Power [W] |
Gear Ratio | Rated Voltage [V] |
Connection Cable*2 |
---|---|---|---|---|---|
60 | 30 | 5~200 | Single-Phase 100-120 Single-Phase, Three-Phase 200-240 |
Connection Cable |
|
80 | 60 | ||||
90 | 120 | ||||
110 | 200 | ||||
400 | Single-Phase, Three-Phase 200-240 | ||||
60 | 30 | 5~200 | Single-Phase 100-120 Single-Phase, Three-Phase 200-240 |
||
80 | 60 | ||||
90 | 120 | ||||
104 | 200 | 10~100 | |||
400 | 5~100 | Single-Phase, Three-Phase 200-240 | |||
60 | 30 | - | Single-Phase 100-120 Single-Phase, Three-Phase 200-240 |
||
80 | 60 | ||||
90 | 120 | ||||
104 | 200 | ||||
400 | Single-Phase, Three-Phase 200-240 |
- *1
- Models with an electromagnetic brake are available for all types.
- *2
- A set of cables for motor and encoder.
