Bipolar Driver for 2-Phase Stepper Motors
Driver for 5-Phase Stepper Motors
CVD Series

Bipolar Driver for 2-Phase Stepper Motors Driver for 5-Phase Stepper Motors CVD Series
  • DC input
  • Compact drivers
  • High torque, low vibration, low noise

คุณลักษณะ | Bipolar Driver for 2-Phase Stepper Motor/Driver for 5-Phase Stepper Motor CVD Series

Improved Performance

Low vibration

Full-time microstep drive with full digital control has greatly improved the vibration level, resulting in lower vibration in all speed ranges.

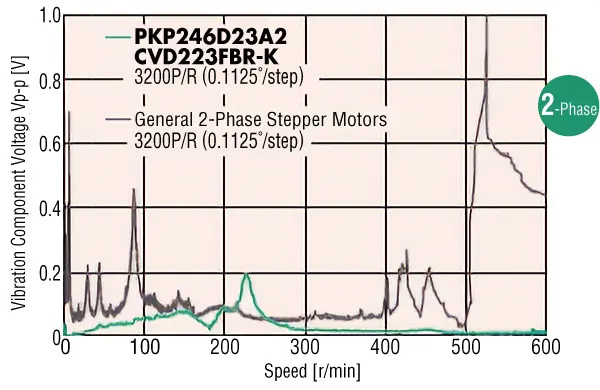

  • Significantly Improved Vibration Characteristics in All Speed Ranges

    Significantly Improved Vibration Characteristics in All Speed Ranges
  • Even Lower Vibration

    Even Lower Vibration

Click here for details of such as an overview, characteristics, and features of this product (Technical report)

Industry's-Top-Class Compact High Performance Driver

Compact and lightweight drivers that contribute to space saving. The size, installation, I/O and power connectors for 2-phase and 5-phase drivers are the same.

Right-Angle Type With Mounting Plate
Size Mass
W 85 mm × D 52.5 mm × H 24.5 mm 20~70 g
CVD Pulse Input Connection

Driver That Can be Selected According to the Installation Method

Drivers with different shapes and connector orientations are available to match the installation method.

  • Right-Angle Type With Mounting Plate

    The connector faces outwards.

    Right-Angle Type With Mounting Plate
  • With Mounting Plate

    The connector faces upwards.

    With mounting plate
  • Without Mounting Plate

    The connector faces upwards.

    Without Mounting Plate

Examples of driver installation

2 Types of Drivers to Choose From

Customers can select either the "pulse input type" or the "RS-485 communication type" according to the host controller they are using.

Pulse Input Type

Controllable by pulse signal.

Pulse Input Type

RS-485 Communication Type

Controllable by Modbus (RTU). Operation data such as "position" and "speed" are set to the driver.

RS-485 Communication Type

Driver Product Line/Applicable Motors

Bipolar Driver for 2-Phase Stepper Motor CVD Series Pulse Input Type

Driver Product Name Motor Drive Current Applicable Motor
With Mounting Plate
Right-Angle
With Mounting Plate Without Mounting Plate
CVD205BR-K CVD205B-K CVD205-K 0.5 A/Phase PKP213D
CVD206BR-K CVD206B-K CVD206-K 0.6 A/Phase PKP203D, PKP214D
CVD215BR-K CVD215B-K CVD215-K 1.5 A/Phase PKP22□■D, PKP23□D15, PKP24□■D15, PKP262FD
CVD223BR-K CVD223B-K CVD223-K 2.3 A/Phase PKP23□D23, PKP24□D23
CVD223FBR-K CVD223FB-K CVD223F-K 2.3 A/Phase PKP24□■D
CVD228BR-K CVD228B-K CVD228-K 2.8 A/Phase PKP26□D14, PKP26□■D28
CVD242BR-K CVD242B-K - 4.2 A/Phase PKP26□D42
CVD245BR-K CVD245B-K - 4.5 A/Phase PKP29□D
  • *A number indicating the length of the motor case is entered where the box □ is located within the names of the applicable motors.
    For the high-resolution type, M (high-resolution type) indicating the motor type is entered where the box ■ is located within the names of the applicable motors.
    The applicable motors are listed such that the available combinations with the driver are distinguishable.
    Combinations with the encoder type and geared type are also available.

Bipolar Driver for 2-Phase Stepper Motor CVD Series RS-485 Communication Type

Driver Product Name Motor Drive Current Input Current
A
Applicable Motor
With Mounting Plate
Right-Angle
With Mounting Plate
CVD2BR-KR CVD2B-KR 0.5 A/Phase 0.5 PKP213D05■
0.6 A/Phase 0.5 PKP203D06■, PKP214D06■
0.85 A/Phase 0.8 PKP24□D08■2
1.4 A/Phase 1.3 PKP26□D14■2
1.5 A/Phase 1.9 PKP22□D15■, PKP22□MD15■, PKP22□D15■2, PKP23□D15■,
PKP24□D15■, PKP24□MD15■, PKP262FD15A
1.4 PKP24□D15■2, PKP24□MD15■2
2.3 A/Phase 2.0 PKP23□D23■, PKP24□D23■2, PKP24□D23■
2.8 A/Phase 3.0 PKP26□D28■2, PKP26□MD28■2, PKP26□D28■, PKP26□MD28■
  • *A number indicating the length of the motor case is entered where the box □ is located within the names of the applicable motors.
    Either A (single shaft) or B (double shaft) indicating the configuration is entered where the box ■ is located within the names of the applicable motors.
    The applicable motors are listed such that the available combinations with the driver are distinguishable.
    Combinations with the encoder type and geared type are also available.

2Click here for information about the 2-Phase PKP Series

Driver for 5-Phase Stepper Motor CVD Series Pulse Input Type

Driver Product Name Motor Drive Current Applicable Motor
With Mounting Plate
Right-Angle
With Mounting Plate Without Mounting Plate
CVD503BR-K CVD503B-K CVD503-K 0.35 A/Phase PK513, PK52□, PKP52□N03, PKP52□MN03
CVD507BR-K CVD507B-K CVD507-K 0.75 A/Phase PK52□H, PK54□, PKP52□N07, PKP52□MN07
CVD512BR-K CVD512B-K CVD512-K 1.2 A/Phase PKP52□N12
CVD514BR-K CVD514B-K CVD514-K 1.4 A/Phase PK56□
CVD518BR-K CVD518B-K CVD518-K 1.8 A/Phase PKP54□
CVD524BR-K CVD524B-K CVD524-K 2.4 A/Phase PKP56□FN24, PKP56□FMN
CVD528BR-K CVD528B-K - 2.8 A/Phase PKP56□N28, PK56□H, PK59□H
CVD538BR-K CVD538B-K - 3.8 A/Phase PKP56□FN38
  • *A number indicating the length of the motor case is entered where the box □ is located within the names of the applicable motors.
    The applicable motors are listed such that the available combinations with the driver are distinguishable.
    Combinations with the encoder type and geared type are also available.

Driver for 5-Phase Stepper Motor CVD Series RS-485 Communication Type

Driver Product Name Motor Drive Current Input Current
A
Applicable Motor
With Mounting Plate
Right-Angle
With Mounting Plate
CVD5BR-KR CVD5B-KR 0.35 A/Phase 0.6 PK513, PK52□P, PKP52□N03, PKP52□MN03
0.75 A/Phase 1.4 PK52□H, PK54□, PKP52□N07, PKP52□MN07
1.2 A/Phase 1.7 PKP52□N12
1.4 A/Phase 1.8 PK56□
1.8 A/Phase 2.8 PKP54□N18■2, PKP54□N18■, PKP54□MN
2.4 A/Phase 3.0 PKP56□FN24■2, PKP56□FMN
  • *A number indicating the length of the motor case is entered where the box □ is located within the names of the applicable motors.
    Either A (single shaft) or B (double shaft) indicating the configuration is entered where the box ■ is located within the names of the applicable motors.
    The applicable motors are listed such that the available combinations with the driver are distinguishable.
    Combinations with the encoder type and geared type are also available.

Click here for information about the 5-Phase PKP Series
