Brushless Motors

BLV Series R Type

Brushless Motors BLV Series R Type
mobi Modular Automation Compatible Product
  • Compact Driver Compatible with Battery Drive
  • Compact and High Power, Ideal for Guided Vehicles
  • Compatible with Modbus and CANopen Communication
  • Output Power 60 to 400 W
  • Speed Control Range 1 to 4000 r/min

คุณลักษณะ | Brushless Motor BLV Series R Type

Overview and Applications

2-Minute Explanation of the BLV Series R Type

See the features of the BLV Series R Type in this video.

  • Output Power: 60 W, 100 W, 200 W, 400 W
  • Compact and Lightweight Drivers
  • Power Supply Input: 24~48 VDC
  • Also Available With Electromagnetic Brake

Applications

Autonomous Mobile Robot With Belt Conveyor

Autonomous Mobile Robot With Belt Conveyor

Low Clearance Transportation Robot

Low clearance transportation robot

Agitator

Agitator

Conveyor

Conveyor

Motorized Heads for Security Cameras

Motorized heads for security cameras

Compact, Lightweight, and High Power

Compact and Lightweight Design

Both the motor and the driver are significantly smaller and lighter.

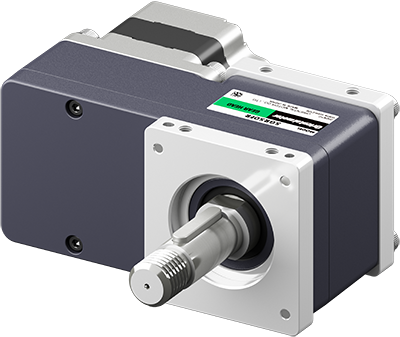

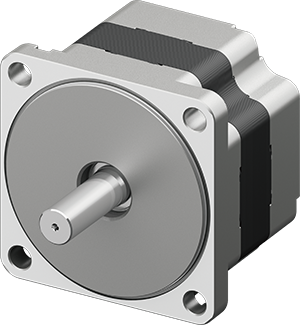

Motor*

Motor
  • *Parallel Shaft Gearhead 400 W, Gear Ratio: 30

Video Explaining the Advantages of Compact and Lightweight Motors

Driver

Drivers
  • For the 24 VDC 400 W type, 160 (W) mm x 110 (D) mm x 35 (H) mm and 0.46 kg mass.

Video Explaining Drivers

High Power

Capable of driving larger load inertia than conventional products, enabling the transport of heavy loads.

[Transportation Robot Equipment Design Example]

Conditions

BLV Series R Type
Motor
Product Line Parallel Shaft Gearhead
Output Power 400 W
Gear Ratio 30
Driving Condition Wheel Diameter 150 mm
Number of Drive Wheels 2
Acceleration Time 1 sec.

Result

Maximum Transportable Mass
(Mass of transport robot body + load mass)
500 kg
Maximum Travel Speed 0.7 m/sec
  • *Calculated using a wheel friction coefficient of 0.1.
[Transportation Robot Equipment Design Example]

Significantly Increased Permissible Load - Flange Drive Adapter (Sold separately) -

Mounting on a parallel shaft gearhead increases permissible radial and axial loads.
Wheels and rotating tables can be directly mounted on rotating mechanisms easily, contributing to reduced design times.

  • *Can be used with 100 W output power motor parallel shaft gearheads

Click here for details

Significantly increased permissible load - Flange drive adapter (sold separately) -

Wide Speed Control Range, High Speed Stability

Wide Speed Control Range: 1~4000 r/min

Low speed range from 1 r/min provides stable operation for smoother starts and stops.

Wide Speed Control Range: 1~4000 r/min

Advantages

  • Achieves smooth operation even with repeated starts and stops such as when following the motion of a person.

High Speed Stability Ensures Operation at the Speed Set

Speed regulation (load) is as small as ±0.01 %. Operation maintains the set speed even if load magnitude changes.

High Speed Stability Ensures Operation at the Speed Set
  • *±0.2 % at digital setting

Present Position Acquisition and Positioning Operation Available

Since the motor provides abundant feedback information, the present position can be acquired.
In addition, stops can be set to your desired position through the improved resolution.

Present Position Acquisition and Positioning Operation Available
  • Stopping accuracy during positioning operation is ±0.72° on the motor shaft and 1~2° on the gearhead output shaft.

Improved Usability/Recommended Functions

Expanded Allowable Operating Voltage

Expanded Allowable Operating Voltage

Advantages

  • 24~48 VDC batteries are compatible.
  • Does not stop even when battery voltage deteriorates.
    Continuous operation while limiting rotation speed and torque.

Power Consumption Reduced by 10 %

Power Consumption Reduced by 10 %

Advantages

  • For battery-powered transportation robots, the distance and travel time capabilities are extended.
    As a result, batteries can be charged less frequently.
  • The MEXE02 support software can monitor the power consumption remotely.
    This can be used as a guideline for recharging.
Advantages

Electric Brake Enables Hold During Stops

Holding force is generated in a stopping motor that is excited (servo-on).
Even motors without an electromagnetic brake can be used as an electric holding brake.
There is also a function to hold position so that it does not deviate from the stopping position.

ATL Function Automatically Limits Output Torque

Even if the motor is overloaded, the ATL function attempts to continue operation by reducing the output torque to prevent the motor from stopping due to the overload alarm.

Simplifying the Main Program via Sequence Function

When used during a stored data operation, it comes equipped for a wide variety of sequence functions, such as including linked operation, timer settings for each operation, conditional branches, and loop count.

  • Number of stored data settings (up to 256 points)
  • Direct I/O signal counts (input 4, output 2)
  • Remote I/O signal counts (input 32, output 32)
Simplifying the Main Program via Sequence Function

Communication control possible

BLV Series R-Type is compatible with 2 communication interfaces: Modbus (RTU) and CANopen.

Communication control possible

Main Functions Available in Modbus (RTU)

Free Creation of Operation Profiles: Direct data operation

This is an operation method that can simultaneously rewrite data and initiate operations with Modbus (RTU) communication.

Operation Data Type Description
Operation Mode Sets the operation mode.
Position Sets the target position.
Speed Sets the operating speed.
Acceleration Rate Sets the acceleration time.
Deceleration Rate Sets the deceleration time.
Torque Limiting Value Sets the torque limiting value.

Jointly Sending and Receiving Different Data With Each Axis: ID Share Mode

This function improves synchronization between axes through Modbus (RTU) communication.
Communication delay between axes is improved because data can be sent and received jointly through multiple axes.
It is also possible to send different commands to each axis at the same time.
This is our proprietary transmission method.

Jointly Sending and Receiving Different Data With Each Axis: ID Share Mode

Video Explaining ID Share Mode

Support Software Compatible

The MEXE02 support software allows data setting, real drive operations and other various types of monitors to be done via a PC.

Support software can be downloaded from the Oriental Motor website free of charge.

Download MEXE02 support software here

Simple Settings

"Simple communication settings" can be used to set up each communication type easily.

Simple Settings

Enlarge image

Simple Settings

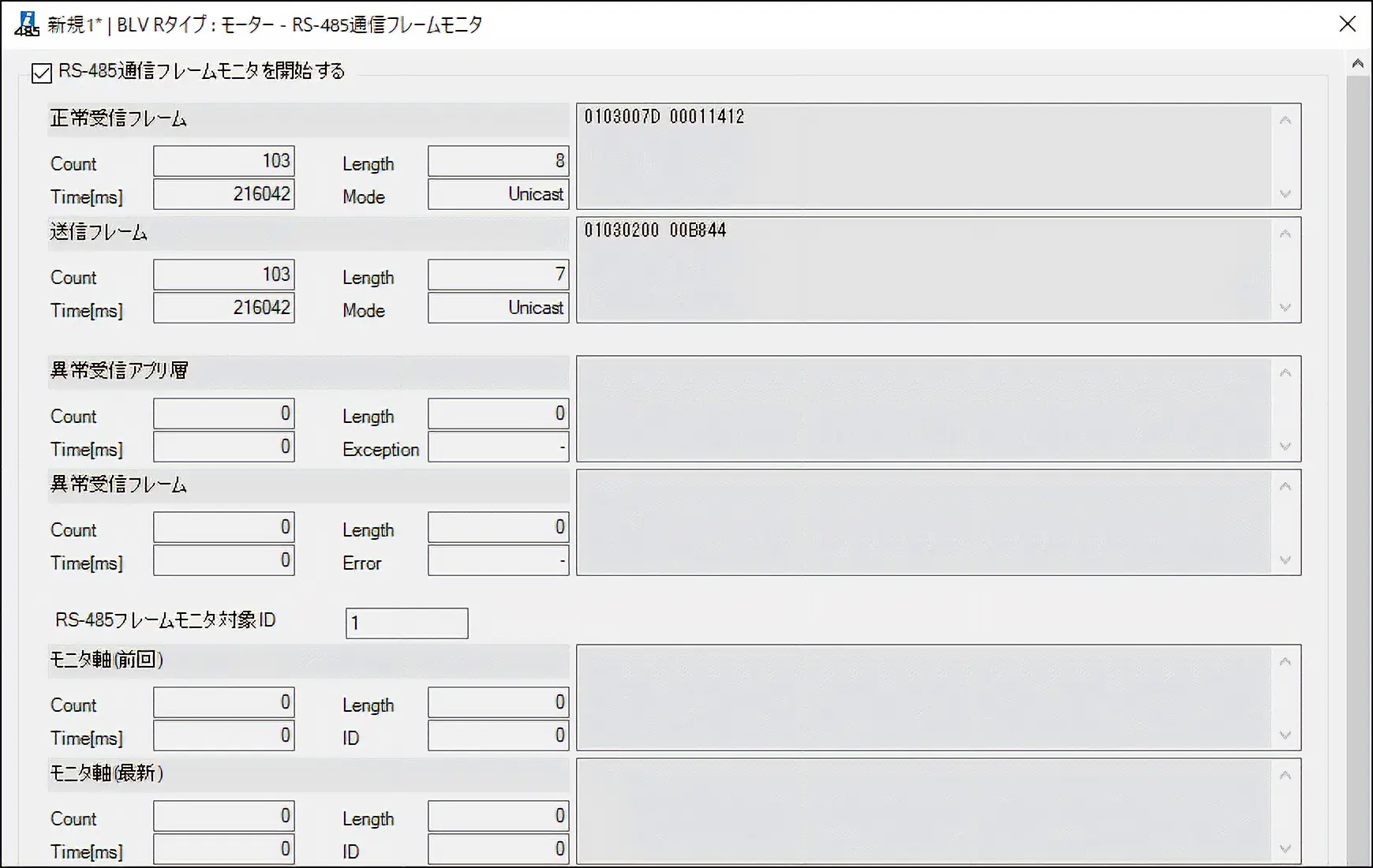

Communication Frame Monitor and Communication Status Monitor

Can be used to monitor the frames and status of each communication type.
Can be used for start-up and debugging of host programs.

Frame Monitor

Enlarge image

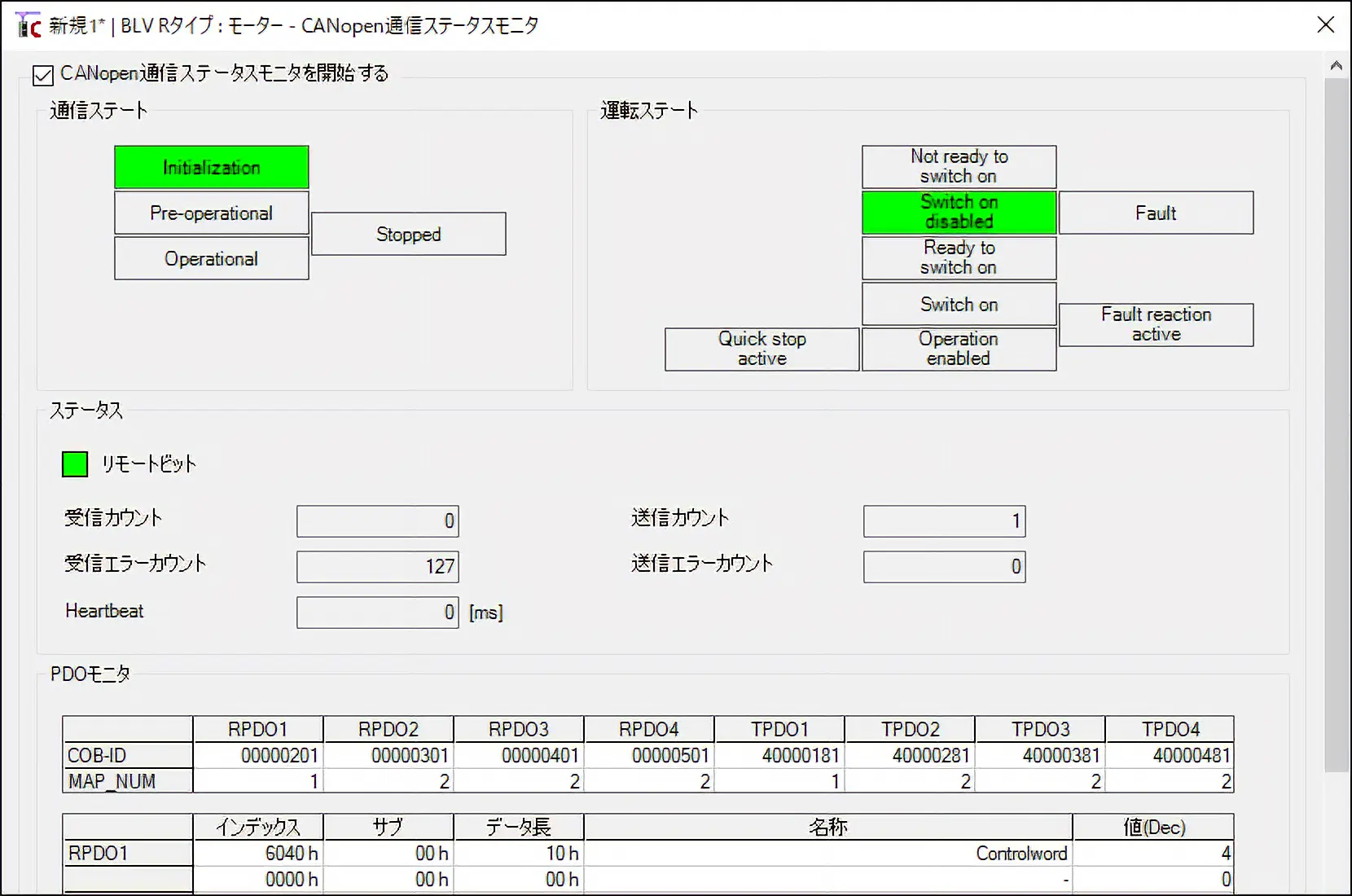

Status Monitor

Enlarge image

Frame Monitor
Frame Monitor

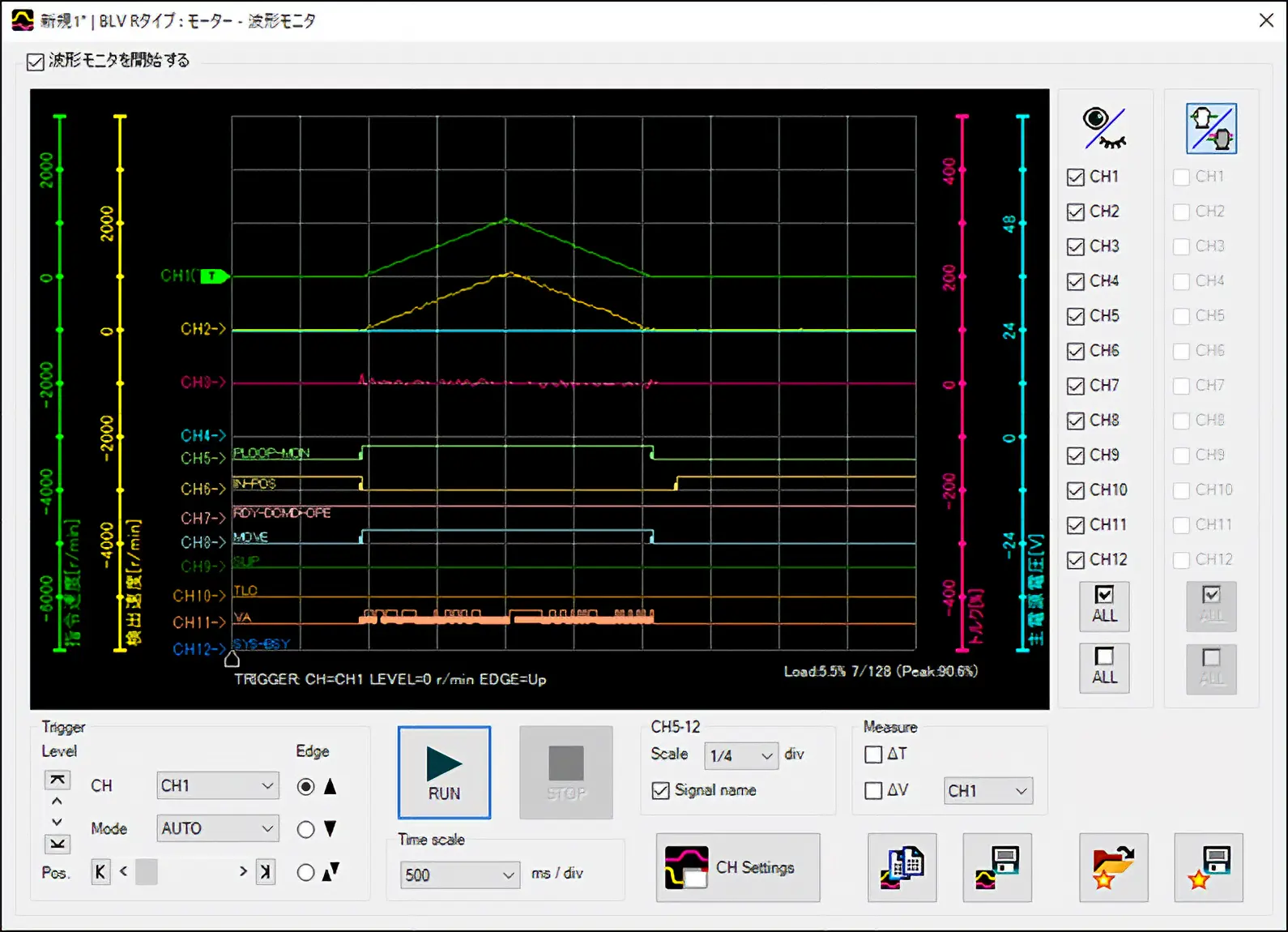

Waveform Monitor

You can check motor operation status (command speed, torque, I/O signals, etc.) like with an oscilloscope.
Waveform readings can be saved as images or in CSV file format.

Waveform Monitor

Enlarge image

Waveform Monitor

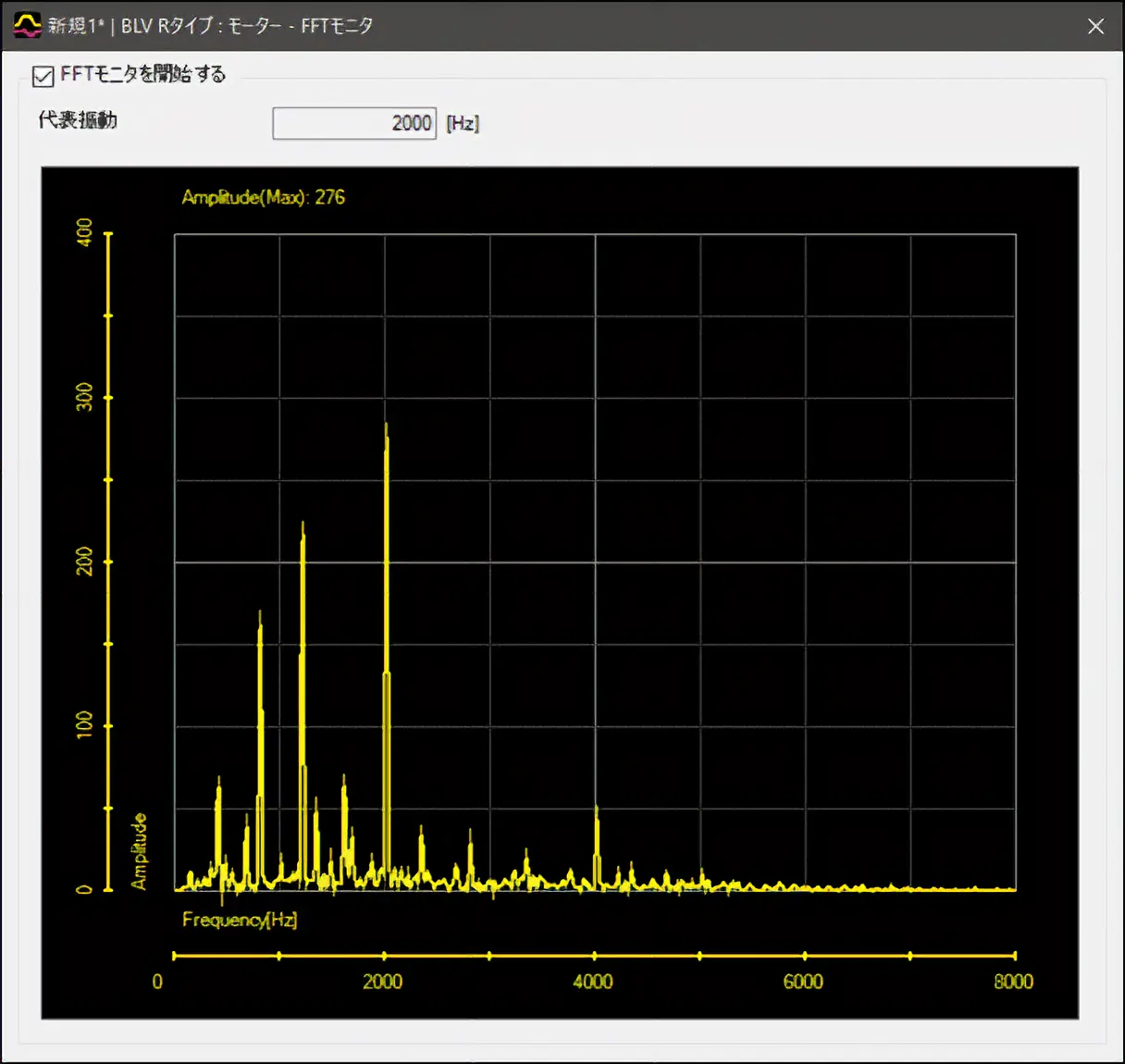

FFT Monitor

Mechanical resonances visualization is achieved through frequency analytics using FFT analysis. Sound and vibration can be reduced by adjusting the "resonance suppression parameters."

Frame Monitor

Enlarge image

Frame Monitor

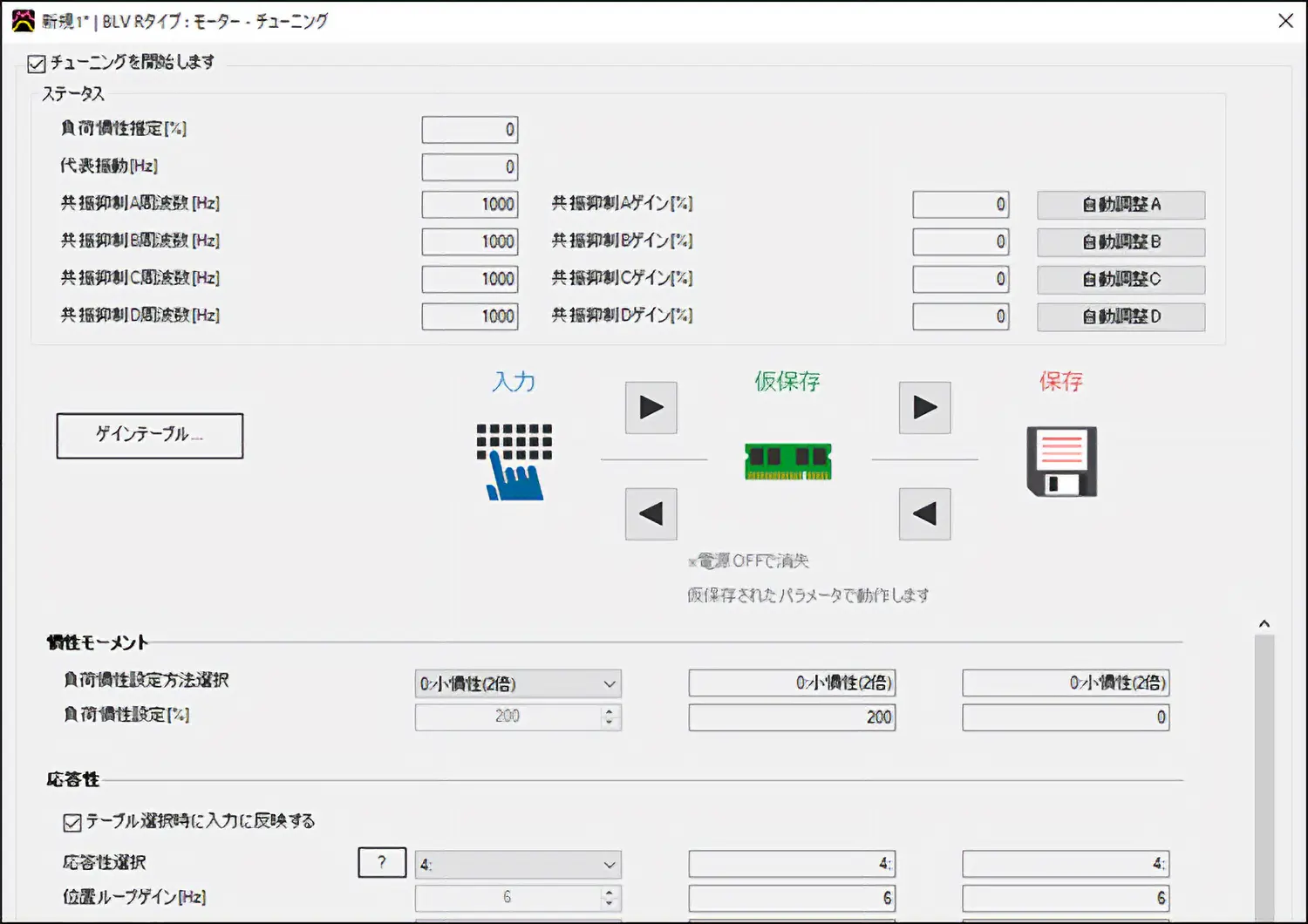

Gain Tuning

The motor’s follow-up in response to commands can be adjusted.

Gain tuning

Enlarge image

Gain tuning

Trace Monitor

The operation status of the motor can be continuously monitored for over 24 hours.
Data can be saved in CSV format.

Trace Monitor

Advantages

  • Since data is retained over a long time period, determining the cause of problems is easier.

Various Monitoring Functions

MEXE02 Support Software can also be used for monitoring a variety of other information.
Refer to the page below for details.

Click here for information about all the functions of the MEXE02 support software
