Product Customization - Special Order Support -

This section provides information about special orders for those searching for custom Oriental Motor products.

What Is Product Customization (Special Order Support) for Oriental Motor?

Oriental Motor accepts special orders such as for customized processing of various products (special order support).
In addition to "Special Order Support," which is subject to technical requirements and minimum lot size, we also offer "Semi-custom Support," in which anyone can order from 1 unit. See below for a description of the differences in customization options and support available for each.

Differences Between "Special Order Support" and "Semi-Custom Support”

Special Order Support Semi-Custom Support
Services Available
  • Individual customization for each customer
  • We will ask about the issue/content and quantity, and confirm the technical feasibility
  • Combining standard products with components such as encoders, shaft shapes that are not included in the standard product line
  • Select from the specifications and product names on the list of semi-custom products available for purchase
Applicable Content Processing of windings, shafts, cables, etc. Change of encoder resolution equipped with product, change of gear combination, etc.
Order Quantity Based on the premise of mass production Can be ordered from 1 unit
Customization Examples
 		 Click here for examples of customization for "Special Order Support" Click here for examples of customization for "Semi-Custom Support"

For more information or technical consultation, please contact your nearest Branch or Sales Office or use our online form.

Online Inquiries

Example of Filling Out the Inquiry Form

Please fill in the form with as much information as possible regarding the content ("Special Order Support" or "Semi-custom Support"), the applicable product model, and estimated quantity for the product.

  • "Special Order Support: I want a shaft processed for an XX Series motor. Quantity is planned to be X units per year"
  • "Semi-custom Support: I would like to purchase a product with the product name XX"

Examples of Product Customization With “Special Order Support”

Customization is available for shafts, cases, windings, cables, etc.
Below are examples of customization. Please feel free to contact us for any customization that is not listed here.

Examples of Customizable Parts

Applicable Products

Stepper motors, Servo motors, Brushless motors, Electric actuators, AC motors, Cooling fans, Cables, etc.
Please contact Oriental Motor for details.

Processing Example: Shaft

The shaft shape can be modified to match the item to be mounted on the shaft end.

Example) Shaft diameter modify, tip pin hole processing, tip screw hole processing, shaft length modify, etc.

Example of Shaft Shape Customization

Processing Example: Motor Case

Additional processing can be performed on the motor case if the motor mounting method needs to be modified or if a sensor needs to be mounted on the motor.

Example) When screw insertion direction relative to the mounting surface is restricted
Mounting holes in the motor case flange modify from tapped holes to through holes, allowing mounting screws to be inserted from the rear of the motor, etc.

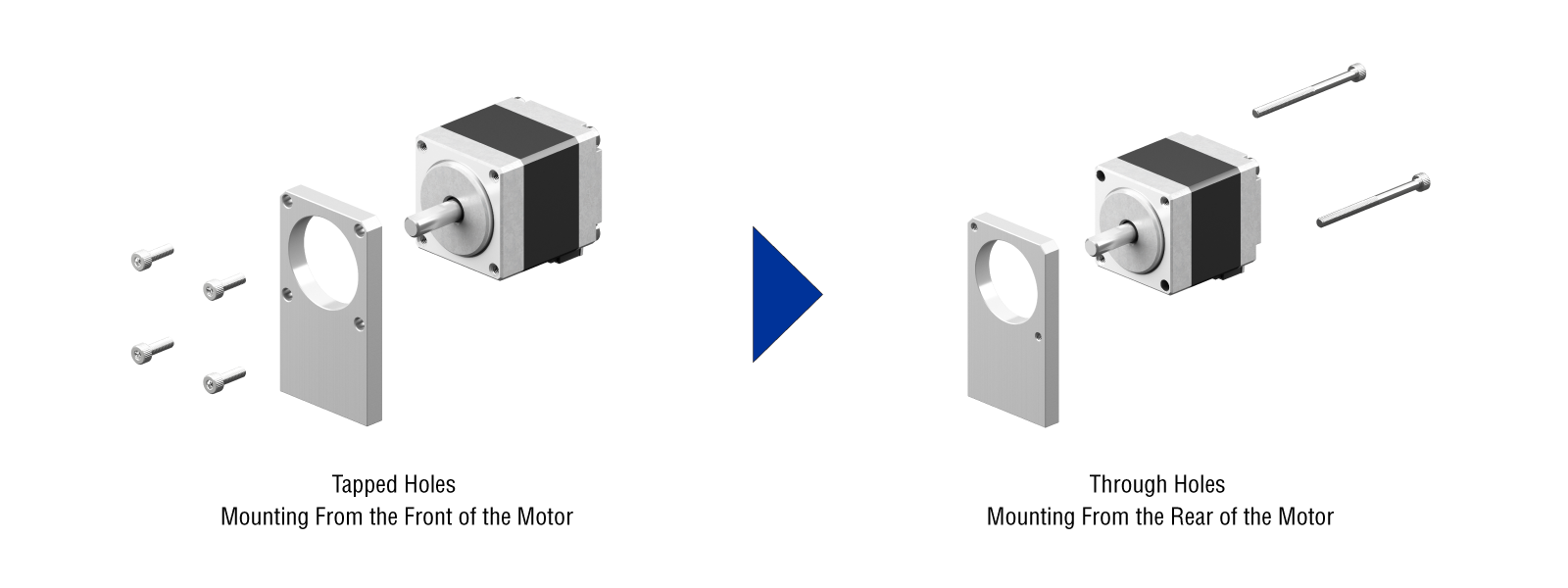

Example of Motor Case Customization

Processing Example: Motor Windings

In stepper motors, the number of windings and wire diameter specifications can be modified to match the required specifications for speed–torque characteristics.

Example) Winding specifications modify to secure torque at high speeds, etc.

Example of Characteristics When Winding Processing Is Customized

Processing Example: Cable

Motor lead wires and cables can be processed to suit the design and manufacturing requirements of the customer equipment.

Example) Assemble the specified connector at the end of the lead wires, bind the lead wires, etc.

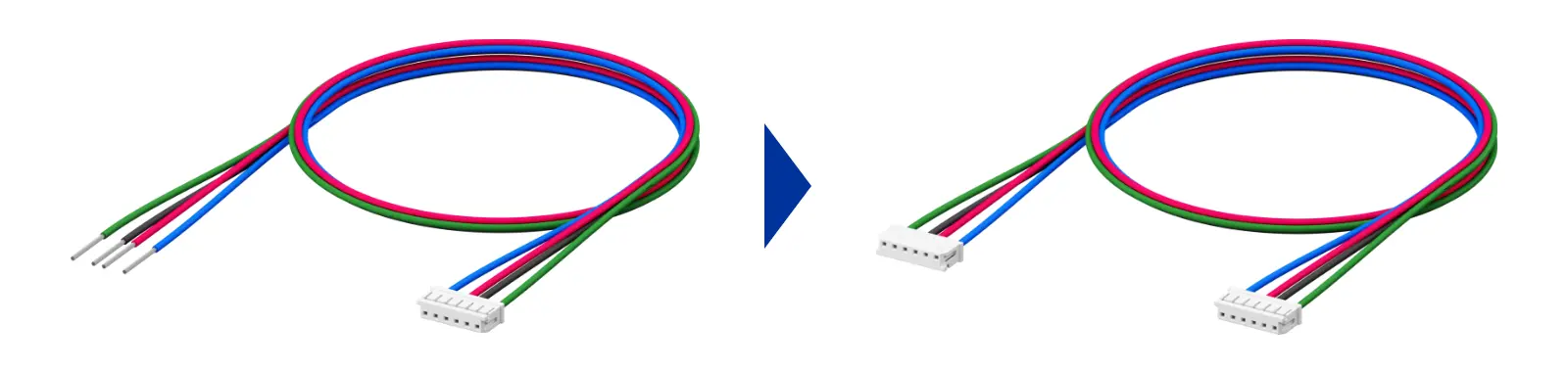

Example of Cable Shape Processing

Examples of Product Customization With “Semi-Custom Support”

Semi-custom support is currently available for the following customizations.
For detailed specifications and list prices, download the relevant product files below.
For inquiries regarding delivery times and orders, contact us via website or Customer Support Center.

Online Inquiries

Example of Filling Out the Inquiry Form

Please fill in the form with as much information as possible regarding the content (semi-custom support) and the applicable product model.
"Semi-Custom Support: I want to know the delivery time and how to purchase a product with the product name XX"

Semi-Custom Suport Products Currently Available for Order

αSTEP AZ Series
(Equipped with the energy harvesting sensor)

Change to shaft types not included in the standard product line

Shaft types: Single-shafted solid shaft / Double-shafted solid shaft

[Product Name, Price, Specification, Dimensions] Semi-Custom Support_AZ Series (Equipped With Energy Harvesting Sensor) Solid Shaft Type.pdff

PKP Series

Resolution change to encoder assay products not in the standard product lineup

Encoder type: Incremental
Resolution [P/R]: 100 / 200 / 360 / 400 / 500 / 600 / 720 / 800 / 1000 / 1800 / 2000 / 2500 / 3600 / 4000

[Product Name and Price] Semi-Custom Support_PKP Series Resolution Change.pdf

[Specification] Semi-Custom Support_PKP Series Encoder Resolution Change.pdf

[Dimensions] Semi-Custom Support_PKP Series Encoder Resolution Change.pdf
