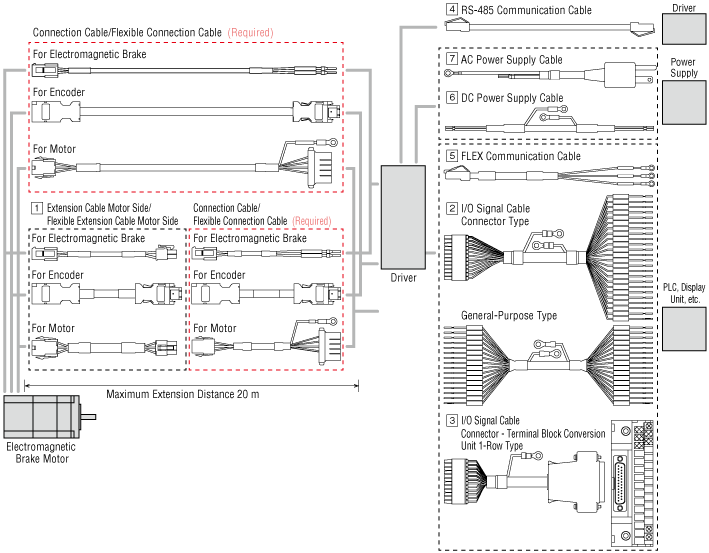

Cables: For AZ Series AC Input Built-in Controller Type/Pulse Input Type with RS-485 Communication
- *Be sure to use a connection cable for the connection between the motor and the driver.
(The motor cable and electromagnetic brake cable from the motor cannot be connected directly to the driver.) - *The cable for electromagnetic brake is required for electromagnetic brake motors.
- *Use flexible cables in applications where the cables are bent. Click here for note on the use of flexible cables
| Number in Illustration |
Cable Name |
|---|---|
| [4] | RS-485 Communication Cable |
| [5] | FLEX Communication Cable General-Purpose Type |
| [6] | DC Power Supply Cable |
| [7] | AC Power Supply Cable |
→ Click here for cable product line
Connection Cable
This cable can be used to connect the motor with driver.
Connection Cable, Flexible Connection Cable
-
For Motor
-
For Encoder
-
For Electromagnetic Brake *
| Length (m) | Connection Cable | Flexible Connection Cable | ||||
|---|---|---|---|---|---|---|
| For Motor | For Encoder | For Electromagnetic Brake * | For Motor | For Encoder | For Electromagnetic Brake * | |
| 0.5 | CC005VZF-M | CC005VNF-E2 | CC005VZF-B | CC005VZR-M | CC005VNR-E2 | CC005VZR-B |
| 1 | CC010VZF-M | CC010VNF-E2 | CC010VZF-B | CC010VZR-M | CC010VNR-E2 | CC010VZR-B |
| 1.5 | CC015VZF-M | CC015VNF-E2 | CC015VZF-B | CC015VZR-M | CC015VNR-E2 | CC015VZR-B |
| 2 | CC020VZF-M | CC020VNF-E2 | CC020VZF-B | CC020VZR-M | CC020VNR-E2 | CC020VZR-B |
| 2.5 | CC025VZF-M | CC025VNF-E2 | CC025VZF-B | CC025VZR-M | CC025VNR-E2 | CC025VZR-B |
| 3 | CC030VZF-M | CC030VNF-E2 | CC030VZF-B | CC030VZR-M | CC030VNR-E2 | CC030VZR-B |
| 4 | CC040VZF-M | CC040VNF-E2 | CC040VZF-B | CC040VZR-M | CC040VNR-E2 | CC040VZR-B |
| 5 | CC050VZF-M | CC050VNF-E2 | CC050VZF-B | CC050VZR-M | CC050VNR-E2 | CC050VZR-B |
| 7 | CC070VZF-M | CC070VZF-E | CC070VZF-B | CC070VZR-M | CC070VZR-E | CC070VZR-B |
| 10 | CC100VZF-M | CC100VZF-E | CC100VZF-B | CC100VZR-M | CC100VZR-E | CC100VZR-B |
| 15 | CC150VZF-M | CC150VZF-E | CC150VZF-B | CC150VZR-M | CC150VZR-E | CC150VZR-B |
| 20 | CC200VZF-M | CC200VZF-E | CC200VZF-B | CC200VZR-M | CC200VZR-E | CC200VZR-B |
- *Required for electromagnetic brake motors.
[1] Motor-Side Extension Cable, Motor-Side Flexible Extension Cable
-
For Motor
-
For Encoder
-
For Electromagnetic Brake *
| Length (m) | Extension Cable | Flexible Extension Cable | ||||
|---|---|---|---|---|---|---|
| For Motor | For Encoder | For Electromagnetic Brake * | For Motor | For Encoder | For Electromagnetic Brake * | |
| 1 | CC010VZFT-M | CC010VZF-E | CC010V3FT-B | CC010VZRT-M | CC010VZR-E | CC010V3RT-B |
| 2 | CC020VZFT-M | CC020VZF-E | CC020V3FT-B | CC020VZRT-M | CC020VZR-E | CC020V3RT-B |
| 3 | CC030VZFT-M | CC030VZF-E | CC030V3FT-B | CC030VZRT-M | CC030VZR-E | CC030V3RT-B |
| 5 | CC050VZFT-M | CC050VZF-E | CC050V3FT-B | CC050VZRT-M | CC050VZR-E | CC050V3RT-B |
| 7 | CC070VZFT-M | CC070VZF-E | CC070V3FT-B | CC070VZRT-M | CC070VZR-E | CC070V3RT-B |
| 10 | CC100VZFT-M | CC100VZF-E | CC100V3FT-B | CC100VZRT-M | CC100VZR-E | CC100V3RT-B |
| 15 | CC150VZFT-M | CC150VZF-E | CC150V3FT-B | CC150VZRT-M | CC150VZR-E | CC150V3RT-B |
- *Required for electromagnetic brake motors.
Other Cables
This cable can be used to connect the driver and controller.
[2] I/O Signal Cable
Connector Type
- Multi-core shielded cable
- Single-ended discrete wire
- Includes ground wire with round terminal for easy shield grounding
| Product Name | Applicable Drivers | Length (m) |
Number of Cores | AWG | Finished Outer Diameter | |
|---|---|---|---|---|---|---|
|
CC24D005C-1 |
Built-in positioning function type Pulse input type with RS-485 communication Pulse input type EtherNet/IP compatible* EtherCAT compatible* PROFINET compatible* |
0.5 | 24 | 24 | φ9.5 |
| CC24D010C-1 | 1 | |||||
| CC24D020C-1 | 2 |
- *Cannot be connected to drivers with DC input. Use a general-purpose type I/O signal cable.
General-Purpose Type
- Multi-core shielded cable
- Double-ended discrete wire
- Includes ground wire with round terminal for easy shield grounding
- Select the number of lead wire cores that matches the desired functionality.
| Product Name | Length (m) |
Number of Cores | AWG | Insulator Outer Diameter | Finished Outer Diameter | |
|---|---|---|---|---|---|---|
|
CC06D005B-1 | 0.5 | 6 | 24 | φ1.1 | φ5.4 |
| CC06D010B-1 | 1 | |||||
| CC06D015B-1 | 1.5 | |||||
| CC06D020B-1 | 2 | |||||
| CC10D005B-1 | 0.5 | 10 | φ6.7 | |||
| CC10D010B-1 | 1 | |||||
| CC10D015B-1 | 1.5 | |||||
| CC10D020B-1 | 2 | |||||
| CC12D005B-1 | 0.5 | 12 | φ7.5 | |||
| CC12D010B-1 | 1 | |||||
| CC12D015B-1 | 1.5 | |||||
| CC12D020B-1 | 2 | |||||
| CC16D005B-1 | 0.5 | 16 | ||||
| CC16D010B-1 | 1 | |||||
| CC16D015B-1 | 1.5 | |||||
| CC16D020B-1 | 2 |
[3] I/O Signal Cable Connector - Terminal Block Conversion Unit 1-Row Type
Connector - Terminal Block Conversion Unit
These are conversion units that can connect a driver to a programmable controller or a sensor using a terminal block.
- Includes ground wire with round terminal for easy shield grounding
- Includes a signal name plate for easy, one-glance identification of driver signal names
- Both DIN rail mount and screw mount are possible.
- Crimp terminals can be used with both round and Y terminals.
[4] RS-485 Communication Cable
This cable is to connect drivers with the built-in controller type. It also connects the network converter to the drivers.
![[4] RS-485 Communication Cable](/sites/default/files/image/products/accessories/cable/az-ac-con/cable-az-ac-con_02.webp)
[5] FLEX Communication Cable
This cable is convenient for connecting FLEX compatible products to various equipment that is Modbus-controlled by RS-485 communication.
General-Purpose Type
The general-purpose type comes with a termination resistor.
[6] DC Power Supply Cables
Shielded cable for connection of DC power supply and electromagnetic brake. Ground wire with round terminal for easy shield grounding.
| Product Name | Length (m) |
AWG | Insulator Outer Diameter | Finished Outer Diameter | |
|---|---|---|---|---|---|
|
CC02D005-3 | 0.5 | 20 | φ1.65 | φ5.9 |
| CC02D010-3 | 1 | ||||
| CC02D015-3 | 1.5 | ||||
| CC02D020-3 | 2 | ||||
| CC02D050-3 | 5 |
[7] AC Power Supply Cable
This cable is to connect driver and AC power supply. Cables are available with or without a power supply plug.
Cable Note When Wiring Flexible Cable
Do not bend the cable at the connector. Stress applied to the connectors and terminals causes poor contact and disconnection.
How to Fix the Cable
Fix the connector part in 2 places to prevent it from moving.
Wiring Length and Bending Radius of the Cable
Wiring should be installed at an appropriate length, so that cables are not pulled during movement.
In addition, the bending radius (R) should be 6 times the cable diameter min.
Interference of the Cable
Wire the cables in the cable holder without bringing them into contact with each other. This will add stress to the cable, and cause it to break prematurely. Please check note on cable holders carefully before use.
Cable Kinks
◇Please wire without kinks in the cable. Kinking in a twisted state can cause premature disconnection. After wiring, confirm that there are no kinks in the cable, using the print on the cable surface as a reference.
