Mounting Bracket Mounting Brackets for Circuit Products
MAFP06W-4
Mounting Brackets for Circuit Products
| การจำแนกประเภทผลิตภัณฑ์ | ชื่อผลิตภัณฑ์ | รายการราคา | วันที่จัดส่ง |
|---|---|---|---|
| Mounting Brackets for Circuit Products | MAFP06W-4 | THB 1,671 | 17 Working Days |

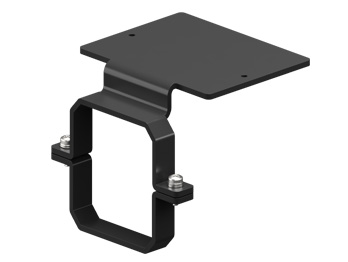

| คำอธิบาย | This is a metal fitting that attaches the control circuit to the side of the motor. Applicable products (control circuit): AZ series mini driver (excluding AZD-KR2D) Applicable products (motor): AZ series connector type, mounting angle dimension 42 mm (excluding FC geared type) Note: Pay attention to the bending radius and cable Length of the connection cable. In addition, for cables with a Length of 0.2 m, use the cable with the pull-out direction facing away from the output shaft. |
|---|
รวม
- Mounting Brackets for Circuit Products: None (The customer must provide the screws used to fasten the circuit product to the mounting bracket.)
ข้อมูลเฉพาะ

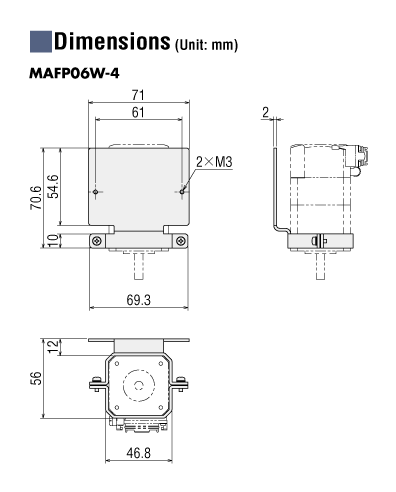

ขนาด
ดาวน์โหลดข้อมูล
มาตรฐาน
Hazardous Substances
The product does not contain any substances (10 substances) exceeding the regulation values of the RoHS Directive (2011/65/EU, 2015/863/EU).
สายเคเบิลและอุปกรณ์เสริม
