Compact Electric Cylinder DR Series System Configuration

  • The following system configuration is 1 example. Other combinations are also available.

Built-in Controller Type/Pulse Input Type with RS-485 Communication

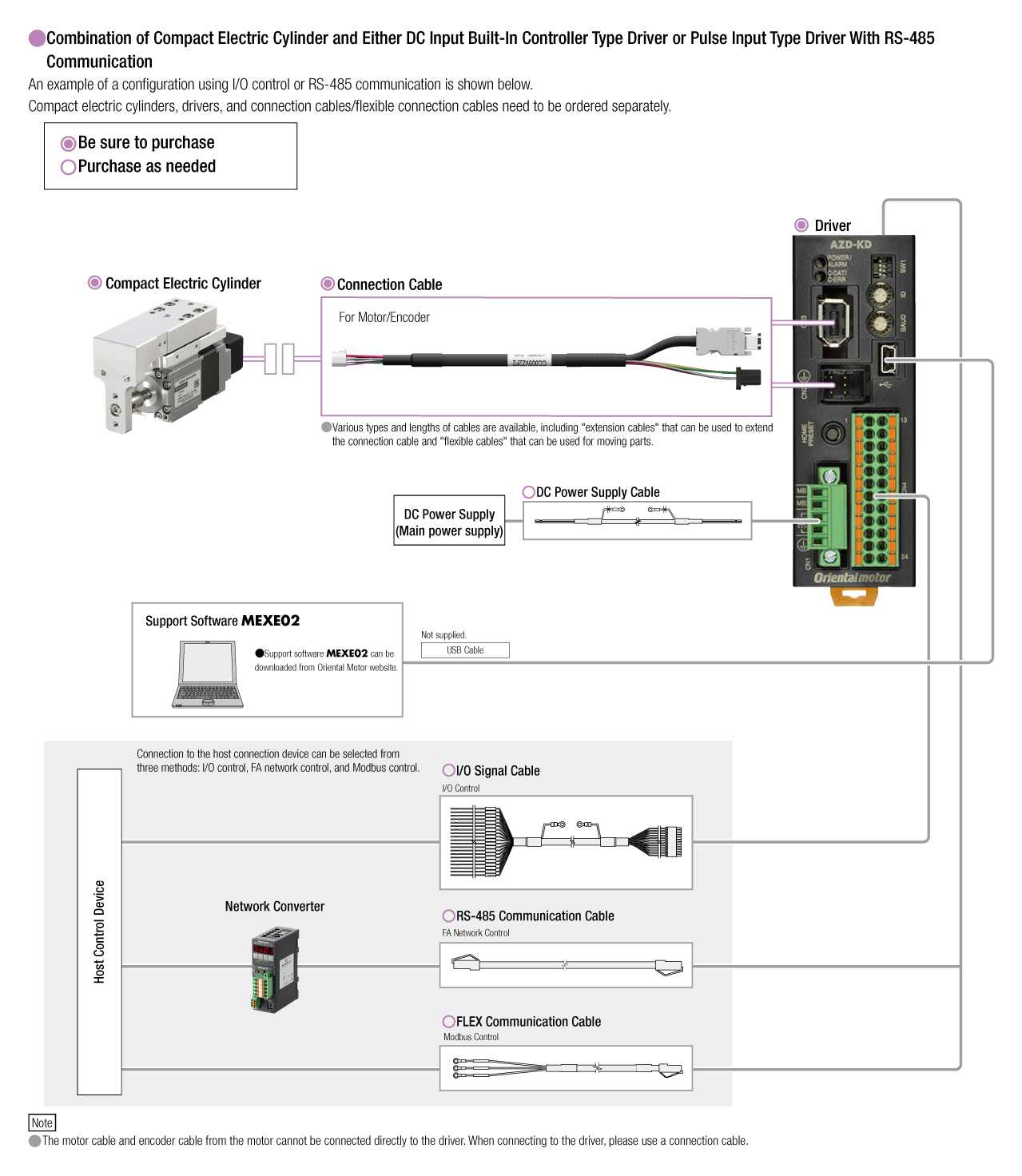

Figure: When the DR Series is combined with driver of the built-in controller type or pulse input type with RS-485 communication

Pulse Input Type

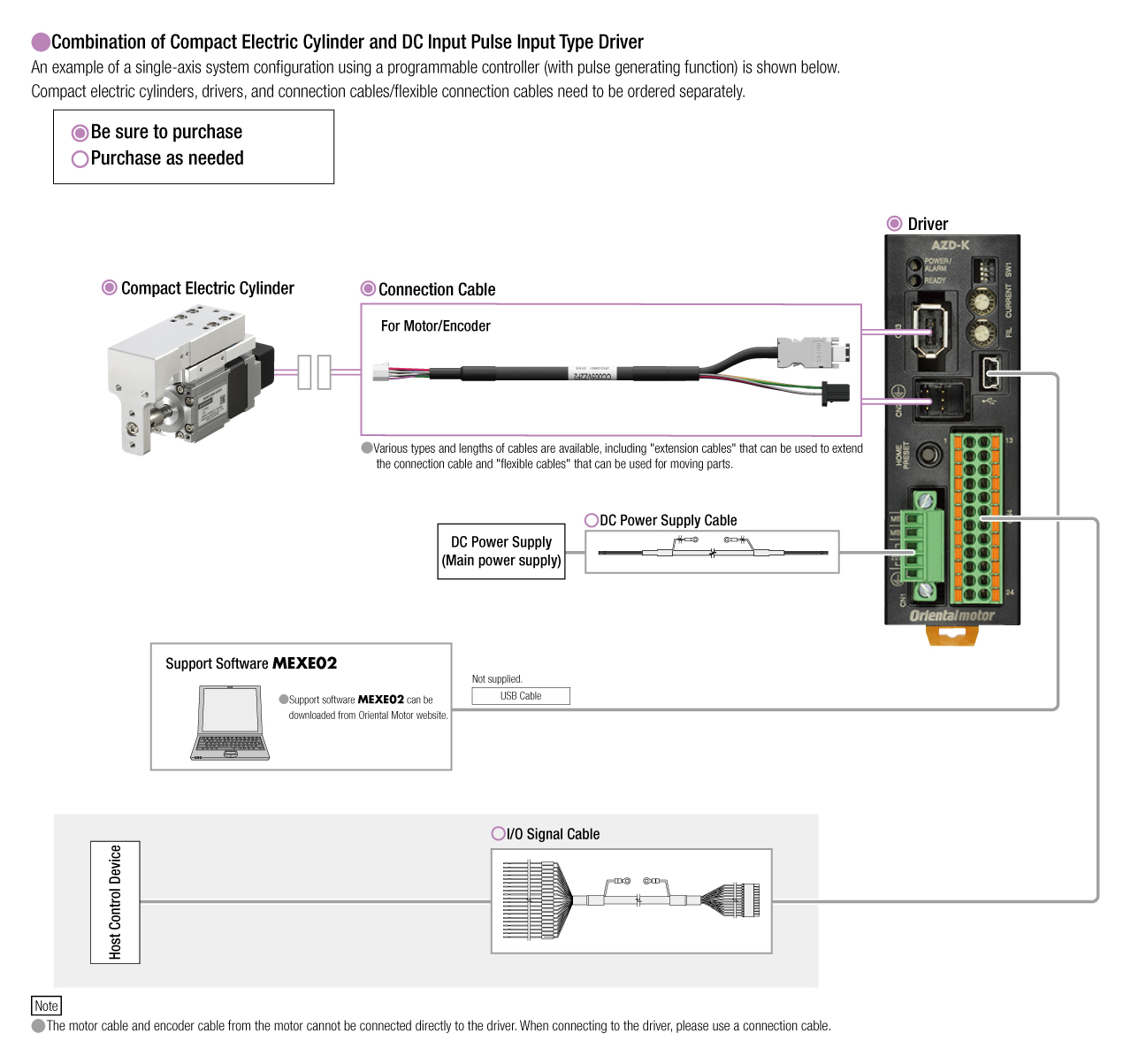

Figure: Combination of DR Series and pulse input type driver

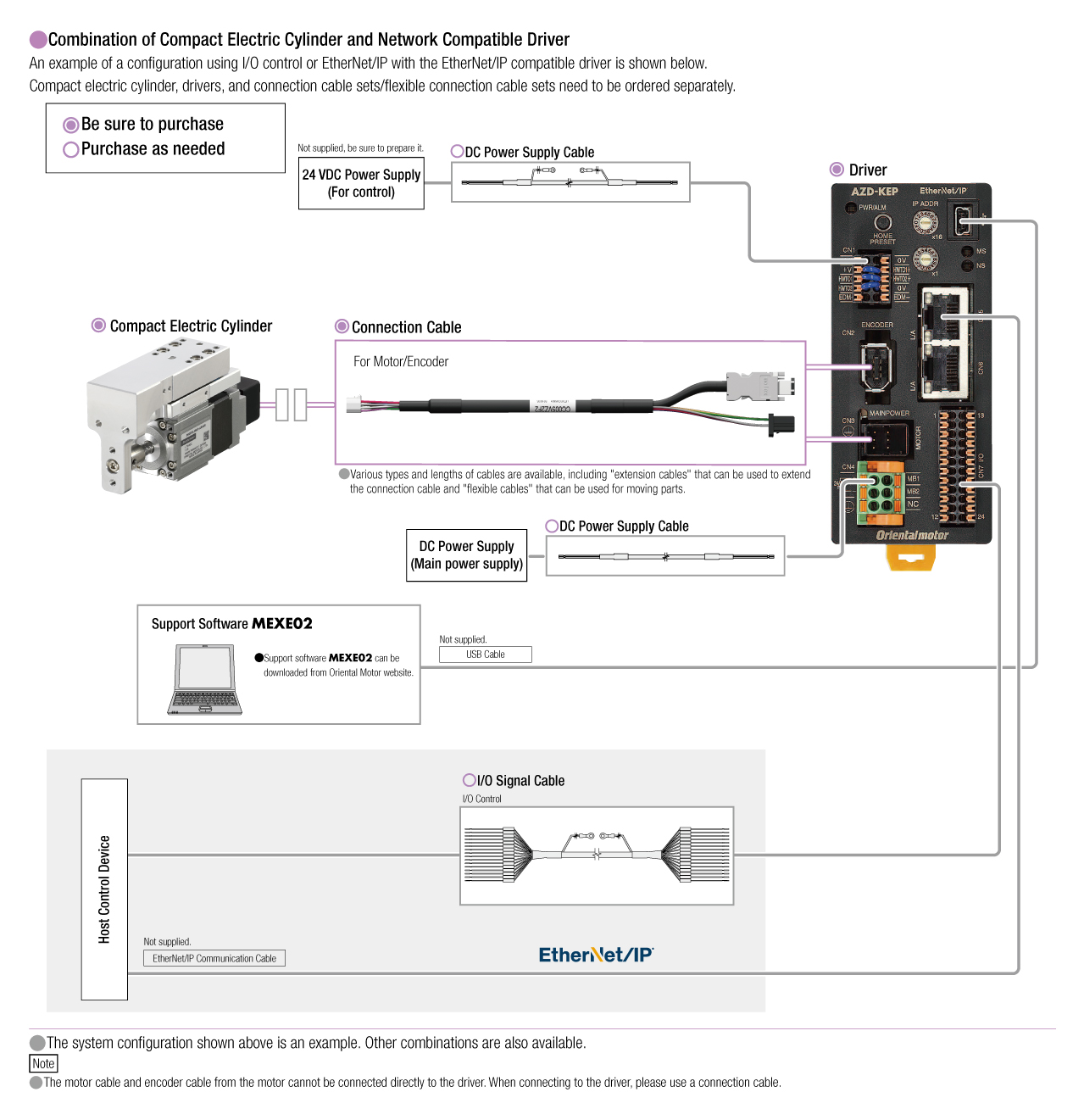

Network Compatible Driver

Network Compatible Driver
