Compact Electric Cylinder DRS2 Series Product Code

Compact Electric Cylinder

  • DRSM 1
  • 42 2
  • R 3
  • G 4
  • -
  • 04 5
  • A 6
  • 2 7
  • AZ 8
  • M 9
  • K 10
1 Series Name
DRSM
DRS2 Series
2 Frame Size
42
42 mm
60
60 mm
3 Cable Outlet Direction*
R
Right side
L
Left side
No code
Non-guide type
4 Configuration
G
Guide type
No code
Non-guide type
5 Stroke
04
40 mm
05
50 mm
6 Ball Screw Type
A
Rolled ball screw
B
Precision ball screw
7 Lead
2
2 mm
4
4 mm
8
8 mm
8 Equipped Motor
AZ
AZ Series
9 Electromagnetic Brake
A
Without electromagnetic brake
M
With electromagnetic brake
10 Motor Power Supply Input
K
DC input
  • *The cable outlet direction is specified only for the guide type.

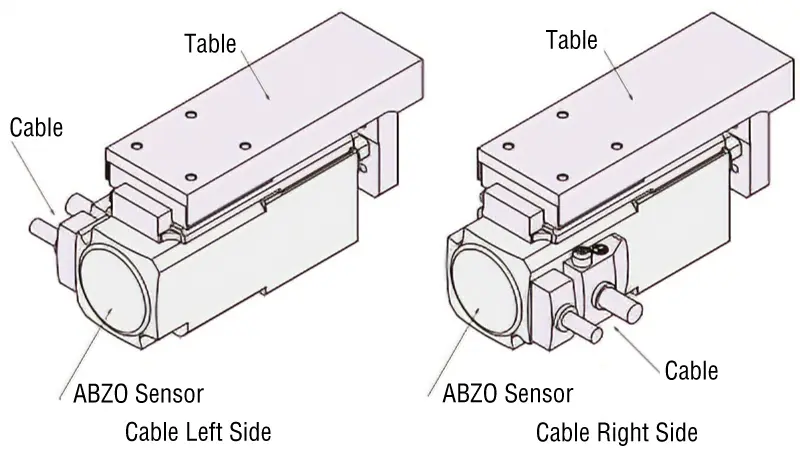

    Shows the direction viewed from the encoder (ABZO sensor part) side with the table facing up.
Cable Direction

Driver

  • AZD 1
  • -
  • K 2
  • ED 3
  • 2 4
1 Driver Type
AZD
AZ Series driver
2 Power Supply Input
K
24/48 VDC
3 Type
D
Built-in controller type
X
Pulse input type with RS-485 communication
None
Pulse input
EP
EtherNet/IP compatible
ED
EtherCAT compatible
PN
PROFINET compatible
4 Reference number

Connection Cable / Flexible Connection Cable

Connection Cable for Motors / Flexible Connection Cable for Motors

Applicable Products: Frame size 42 mm (HPG geared type is 40 mm) and 60 mm

  • CC 1
  • 050 2
  • V 3
  • Z 4
  • F 5
  • 2 6
  • -
  • M 7
1
CC
Cable
2 Length
005
0.5 m
010
1 m
015
1.5 m
020
2 m
025
2.5 m
030
3 m
040
4 m
050
5 m
070
7 m
100
10 m
150
15 m
200
20 m
3 For control
4 Applicable Model
Z
For AZ Series
5 Cable Type
F
Connection cable
R
Flexible connection cable
6 Cable Type
2
DC input
7 For motor

Connection Cable for Encoders / Flexible Connection Cable for Encoders

Applicable Products: Frame size 42 mm (HPG geared type is 40 mm) and 60 mm

  • CC 1
  • 050 2
  • V 3
  • N 4
  • F 5
  • -
  • E 6
  • 2 7
1
CC
Cable
2 Length
005
0.5 m
010
1 m
015
1.5 m
020
2 m
025
2.5 m
030
3 m
040
4 m
050
5 m
070
7 m
100
10 m
150
15 m
200
20 m
3 For Control
4 Applicable Model
N
For AZ Series/NX Series
Z
For AZ Series
5 Cable Type
F
Connection cable
R
Flexible Connection Cable
6 For encoder
7 Reference Number

Connection Cable for Electromagnetic Brakes / Flexible Connection Cable for Electromagnetic Brakes

Applicable Products: Frame size 28 mm, 42 mm (HPG geared type is 40 mm) and 60 mm

  • CC 1
  • 050 2
  • V 3
  • 3 4
  • F 5
  • -
  • B 6
1
CC
Cable
2 Length
005
0.5 m
010
1 m
015
1.5 m
020
2 m
025
2.5 m
030
3 m
040
4 m
050
5 m
070
7 m
100
10 m
150
15 m
200
20 m
3 For Control
4 Reference Number
5 Cable Type
F
Connection cable
R
Flexible Connection Cable
6 For electromagnetic brake
