AC Axial Flow Fans

MU Series Standard Type

AC Axial Flow Fans MU Series Standard Type
  • Small and Flat
  • Easy Operation by Simply Connecting to the Power Supply
  • AC Input, Frame Size 80 to 140 mm

คุณลักษณะ | AC Axial Flow Fan MU Series Standard Type

Features of the MU Series Standard Type

Wide Variation

The product line includes fans of various sizes, power supply voltages, and speed types.
This is a flat, general purpose type AC fan that can be selected according to your purpose of use.

Click here for a list of variations

You Can Also Choose a Product That Comes With a Plug Cord for Power Supply

A plug cord accessory is available that allows you to arrange a fan and a plug cord for power supply together.

You can choose a product that comes with a plug cord for power supply

Easy Setup and Arrangement With the Accessory Set

Mounting screws, filters, and other components have been installed to finger guards to prevent fingers and foreign particles from getting inside and to the panels which provide ideal ventilating and cooling for the control cabinet.
Since this is a set, there is no need to order individual components, and you can mount it to the fan and use it immediately after arrival.

  • *The sets are sold separately from the fan.

Finger Guard Set

Set Contents

  • Finger Guard Set (1 Guard)

    • Steel finger guard set
    • Stainless steel finger guard set

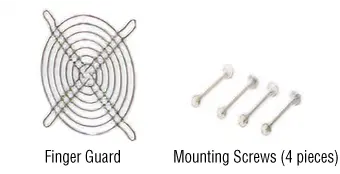

    Finger Guard Set (1 Guard)
  • Finger Guard Set (2 Guards)

    • Steel Finger Guard Set
    • Stainless Steel Finger Guard Set

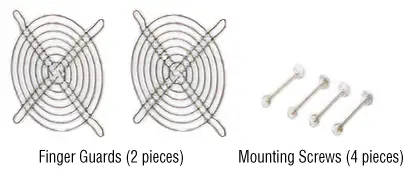

    Finger Guard Set (2 Guards)
  • Finger Guard and Filter Set (1 Each)

    • Steel finger guard and filter set

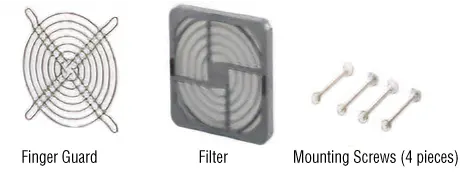

    Finger Guard and Filter Set (1 Each)

Mounting Example

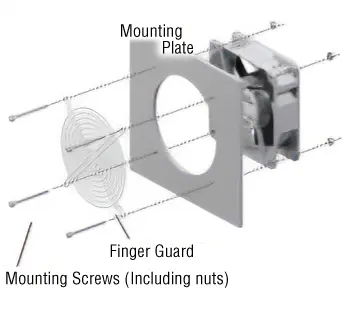

  • Mounting Example of Finger Guard Set (1 Guard)
    • Finger guards are used outside the control cabinet

      Outside →
      For preventing injury

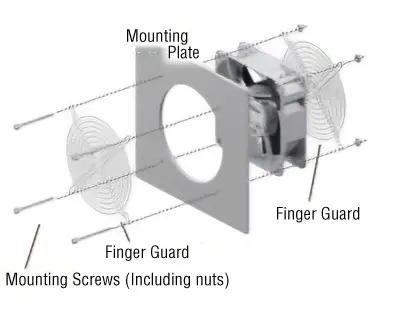

  • Example Mounting of Finger Guard Set (2 Guards)
    • Finger guards are used on both the inside and outisde of the control cabinet

      Inside →
      For protection of the workers
      Outside →
      For preventing injury

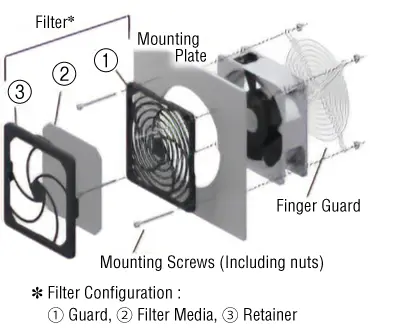

  • Mounting Example of Finger Guard and Filter Set (1 Each)
    • Finger guards are used on the inside of the control cabinet, and filters are used on the outside

      Inside →
      For protection of the workers
      Outside →
      For protection against dust

Click here for finger guard set

Cover Panel Set for Enclosure

Cover Panel Set Product Line

Cover panel set are available in varying degrees of protection. Select the right product for your needs based on the installation environment and application.

  • Finger Guard Cover Panel Set
    IP2X Rating

    Finger Guard Cover Panel Set IP2X Rating
  • Slit Metal Cover Panel Set
    IP4X Rating

    Slit Metal Cover Panel Set IP4X Rating

Dust and Water Resistant Cover Panel Set

  • IP43/55 Rating*

    Dust and Water Resistant Cover Panel Set IP43/55 Rating
    • *The difference in ratings is due to differences in the filter product line.
  • IP54 Rating for Exhaust

    Dust and Water Resistant Cover Panel Set IP54 Rating for Exhaust
  • IP54 Rating for Suction

    Dust and Water Resistant Cover Panel Set IP54 Rating for Suction

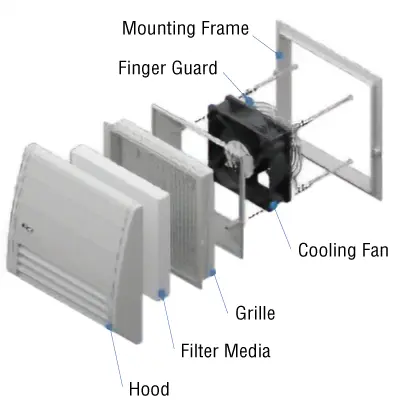

Assembly Diagram

This is a reference diagram of the process for assembling the axial flow fan (sold separately) to the cover panel set for enclosure.

  • Finger Guard Cover Panel Set
    IP2X Rating

    Assembly Diagram for the Finger Guard Cover Panel Set IP2X Rating
  • Slit Metal Cover Panel Set
    IP4X Rating

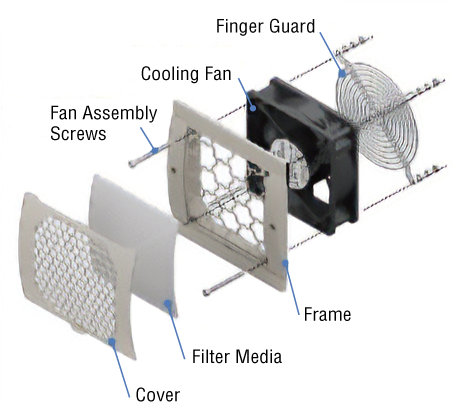

    Assembly Diagram for the Slit Metal Cover Panel Set IP4X Rating

Dust and Water Resistant Cover Panel Set

  • IP43/55 Rating

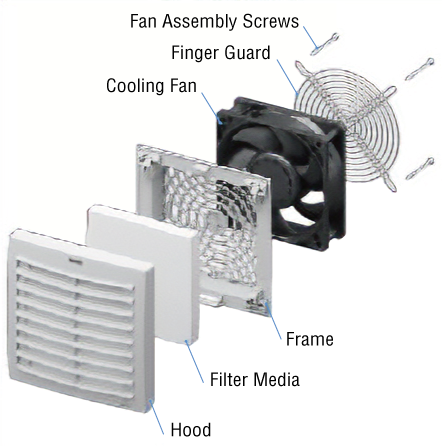

    Assembly Diagram for the Dust and Water Resistant Cover Panel Set IP43/55 Rating
  • IP54 Rating for Exhaust

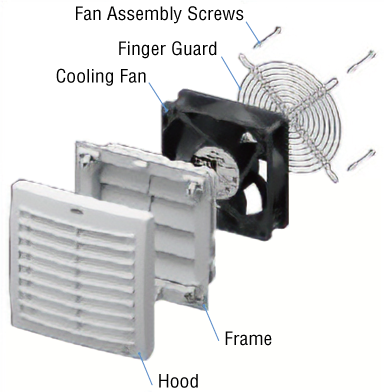

    Assembly Diagram for the
  • IP54 Rating Suction Type

    Assembly Diagram for the

These diagrams provide detailed information and important points such as set content, applicable products, and usage applications for each degree of protection.

The cover panel set for enclosure is available here

Product Line

Size Speed Type Power Supply Voltage
[V]
Maximum Air Flow
[m³/min]
Maximum Static Pressure
[Pa]
□80 mm - 25 mm thick
□80 mm - 25 mm thick
Standard speed Single-Phase 100
Single-Phase 115
Single-Phase 200
Single-Phase 220/230
0.45~0.55 34~49
Low speed Single-Phase 100 0.35~0.45 20~34
□92 mm - 25 mm thick
□92 mm - 25 mm thick
Standard speed Single-Phase 100
Single-Phase 115
Single-Phase 200
Single-Phase 220/230
0.95~1.10 44~59
Middle speed 0.85~1.00 34~44
□104 mm - 25 mm thick
□104 mm - 25 mm thick
Standard speed Single-Phase 100
Single-Phase 115
Single-Phase 230
1.2~1.4 39~44
Low Speed Single-Phase 100 1.0~1.2 29~34
□119 mm - 25 mm thick
□119 mm - 25 mm thick
Standard speed Single-Phase 100
Single-Phase 115
Single-Phase 200
Single-Phase 220/230
1.6~1.9 44~49
Middle Speed 1.4~1.7 31~32
□119 mm - 38 mm thick
□119 mm - 38 mm thick
Standard speed Single-Phase 100
Single-Phase 115
Single-Phase 200
Single-Phase 220/230
2.7~3.0 81
Middle Speed 2.2~2.5 52~59
Low Speed 1.8~1.9 27~34
□140 mm - 28 mm thick
□140 mm - 28 mm thick
Standard speed Single-Phase 100
Single-Phase 200
2.4~2.7 39~43
Single-Phase 220/230 2.4~2.7 34~45
